IEC 60529 Ingress Protection Test Equipment IP1X 50mm Test Sphere Probe With 10-50N Force

IEC 60529 IP1X 50mm Test Sphere Probe With 10-50N Force, Ingress Protection Test Equipment

Relevant descriptions in the IEC 60529:

5.1 Brief description: Protected against access to hazardous parts with the back of a hand

Definition: The access probe, sphere of 50 mm ∅, shall have adequate clearance from hazardous parts

Ingress Protection Test Equipment

5.2 The protection against the ingress of solid foreign objects implies that the object probes up to numeral 2 in table 2 shall not fully penetrate the enclosure. This means that the full diameter of the sphere shall not pass through an opening. in the enclosure.

Table 2: Brief description: Protected against solid foreign objects of 50 mm ∅ and greater

Definition: The object probe, sphere of 50 mm ∅, shall not fully penetrat

The full diameter of the object probe shall not pass through an opening of the enclosure.

Ingress Protection Test Equipment

11.4 Table5: The sphere of 50 mm ∅ shall not fully penetrate and adequate clearance shall be kept

13.1 Table7: Test means (object probes and dust chamber): Rigid sphere without handle or guard 50+0.05 mm diameter

Test force: 50 N ± 1 0 %

Ingress Protection Test Equipment

15.2 Test conditions
The access probe is pushed against any openings of the enclosure with the force specified in table 6. If it partly or fully penetrates, it is placed in every possible position, but in no case shall the stop face fully penetrate through the opening.
Internal barriers are considered part of the enclosure as defined in 3.1 .

Standard:IEC61032 fig.1, IEC60529 IP1 and IEC60065.

Application:This probe is intended to verify protection the back of hand of persons against access to hazardous parts. It is also the necessary probe used to prevent the hazardous parts and solid foreign objects from entering.

Test sample:Easily accessible enclosure live parts or mechanical parts.

Feature:This test probe can be customized. It can be used for anti-electric shock test when equipped with amphenol connector. Or used for enclosure protection test when open threaded hole of M6 at the end of the handle (connected with pull and push dynamometer) .The probe whose model number is with "T" is with force. Ingress Protection Test Equipment

Parameters:

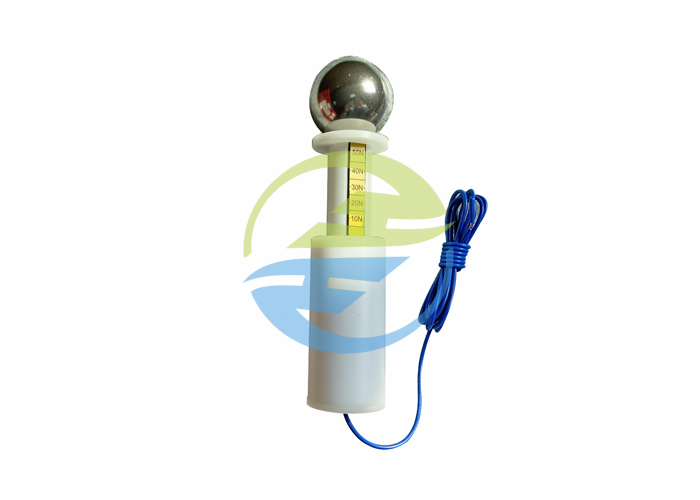

Picture for reference:

IEC 60529 Ingress Protection Test Equipment

50N Ingress Protection Test Equipment

IP1X 50mm Ingress Protection Test Equipment
