IEC60065 Figure 11 Plug Socket Tester , Socket Outlet Torque Tester 0.25 Nm

Name: IEC60065 Figure 11 Plug Socket Tester Socket Outlet Torque Tester 025 Nm
Brand: HongCe
Price: 1 USD

China IEC60065 Figure 11 Plug Socket Tester , Socket Outlet Torque Tester 0.25 Nm wholesale

Brand Name : HongCe

Model Number : HC9908

Certification : Calibration certificate(cost additional)

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 30 set per month

Delivery Time : 3 days (in stock)

Packaging Details : Plywood

Name : Socket Outlet Torque Tester

Warranty : 1 year

Standard : IEC60884, VDE0620, IEC60598, IEC60065Fig11, IEC 60335-1 and so on

Test sample : fixed socket-outlet, plug-in equipment

Weight : 2.5N*1, 1N*1

Arm of force : 0-200mm

The distance from the contact surface and the Axis of the surface : 8mm

Application : Plug Socket Tester

Contact Now

IEC60065 figure 11 - Plug Socket Tester - Socket Outlet Torque Tester 0.25 Nm

Product information:

The torque tester conforms to the standard of IEC 60335-1 Clause 22.3, IEC60065 figure 11. It is used for checking whether the mechanical stress which occurs when the Direct Plug-in Equipment with plug pin normally insert into the socket is in the required range.

A device provided with pins intended to be introduced into fixed socket-outlets shall not impose undue strain on these socket-outlets.

The balancing arm of the test apparatus pivots about a horizontal axis through the centre lines of the contact tubes of the socket-outlet at a distance of 8 mm behind the engagement face of the socket-outlet.

With the device not in engagement, the balancing arm is in equilibrium, the engagement face of the socket-outlet being in the vertical position.

After the device has been engaged, the torque to be applied to the socket-outlet to maintain its engagement face in the vertical plane is determined by the position of a weight on the balancing arm. The torque shall not exceed 0.25 Nm.

Technical parameters:

weight	2.5N1, 1N1
Plug	all-purpose plug(suit for GB and BS plug)1, UL plug1, European plug*1(can be customized )
Conforms to standard	IEC60884,VDE0620,IEC60598,IEC60065Fig11
Arm of force	0-200mm
The distance from the contact surface and the Axis of the surface	8mm

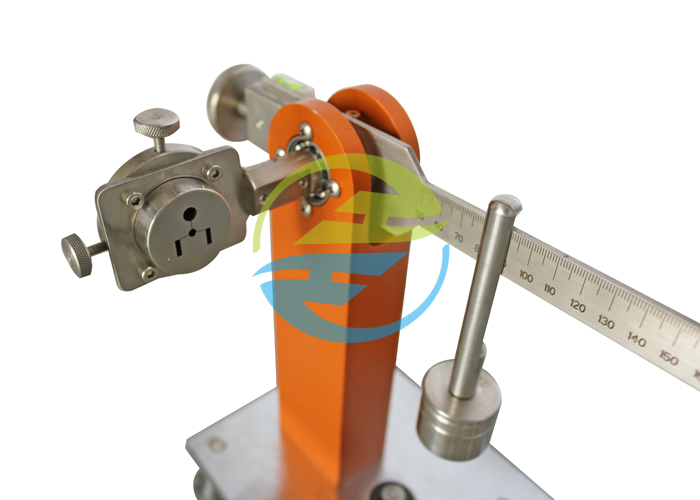

Picture for reference:
